Installation

The Android SDK is a set of lightweight libraries. The libraries deliver as Android Archive Repository, .aar, files. The minimum supported version of Android is v7, level 24.Prove manages a maven repository with Android binaries to enable integration with Gradle.Update the dependencies object in the build.gradle file:

dependencies {
  // Existing dependencies are here.

  // Add the Prove Link dependencies:
  implementation 'com.prove.sdk:proveauth:6.9.0'
}

Point to the repository by updating your settings.gradle file with the Maven repository:

dependencyResolutionManagement {
    // Existing repository settings are here.

    repositories {
        // Existing repositories are here.

        // Add the Prove Link Maven repository:
        maven {
            url = "https://prove.jfrog.io/artifactory/libs-public-maven/"
        }
    }
}

The following needs added to the build.gradle file to also download dependency libraries:

dependencies {
  implementation fileTree('libs')
}

If you receive an error message on the application@fullBackupContent value, you can resolve it by adding this line of code to your application AndroidManifest.xml file inside the <application>...</application> node. Add it as an attribute to the opening application tag:

<application
...
tools:replace="android:fullBackupContent"
...>
</application>

Permissions

The Prove Auth SDK and its children SDKs merge the following permissions into the main app:

<!-- Required to perform authentication -->
<uses-permission android:name="android.permission.INTERNET" />

<!-- Required to access information about networks -->
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

<!-- Required for ConnectivityManager.requestNetwork -->
<uses-permission android:name="android.permission.CHANGE_NETWORK_STATE" />

Send the type of flow: mobile

Unlike the Web SDK, when using the Android SDK, use the mobile flow. Pass mobile to the Start() function on the server. In a mobile flow, Mobile Auth℠ executes first and if that fails, performs OTP validation on the mobile phone.In the mobile flow, once either Mobile Auth or the OTP validation is complete, the AuthFinishStep function executes.

Mobile AuthMobile Auth requires the customer to disable any VPN.

Authenticate()

The SDK requires an authToken as a parameter for the Authenticate() function. This token returns from the Start() call of the server SDK. The token is session specific, limiting it to a single flow. It also expires after 15 minutes.

Retrieve `authToken`

Send a request to your backend server with the phone number, flow type, and an optional challenge of either the date of birth or social security number.

String initialize(String phoneNumber, String ssn, String flowType) {
    YourBackendClient backend = new YourBackendClient(); // Backend API client

    // TODO: Build your InitializeRequest object
    InitializeRequest initializeRequest = new InitializeRequest(phoneNumber, ssn, flowType);

    // Send an initialize request to your backend server to get authToken
    InitializeResponse response = backend.initialize(initializeRequest);

    // TODO: define your own InitializeResponse object to parse authToken string
    return response.getAuthToken();
}

Setup authenticator

Once you have the authToken, build the authenticator for the mobile flow.

// Object implementing AuthFinishStep interface
AuthFinishStep authFinishStep = new AuthFinishStep() {
   ...
};

// Objects implementing OtpStartStep/OtpFinishStep interfaces
OtpStartStep otpStartStep = new OtpStartStep() {
  ...
};

OtpFinishStep otpFinishStep = new OtpFinishStep() {
  ...
};

ProveAuth proveAuth = ProveAuth.builder()
    .withAuthFinishStep(authId -> verify(authId)) // verify(authId) call defined in #Validate the Mobile Phone section
    .withOtpFallback(otpStartStep, otpFinishStep)
    .withContext(this)
    .build();

The mobile data connection can sometimes be unavailable during testing. The Builder class offers a withTestMode(boolean testMode) method, which permits simulated successful session results while connected to a Wi-Fi network only. Testing using a Wi-Fi connection is useful in the Sandbox environment.

ProveAuth proveAuth = ProveAuth.builder()
    .withAuthFinishStep(authId -> verify(authId))
    .withOtpFallback(otpStartStep, otpFinishStep)
    .withContext(this)
    .withTestMode(true) // Test mode flag
    .build();

Performing the authentication

The ProveAuth object is thread safe. You can use it as a singleton. Most Prove Auth methods are blocking and therefore can’t execute in the main app thread. The app employs an executor service with a minimum of two threads to manage threads due to the ability to process concurrent blocking requests.

public class MyAuthenticator {
    private final MyBackendClient backend = new MyBackendClient(); // Backend API client
    private ExecutorService executor = Executors.newCachedThreadPool();
    private final AuthFinishStep authFinishStep = new AuthFinishStep() {
        @Override
        void execute(String authId) {
            try {
                AuthFinishResponse response = backend.authFinish("My App", authId);
                ... // Check the authentication status returned in the response
            } catch (IOException e) {
                String failureCause = e.getCause() != null ? e.getCause().getMessage() : "Failed to request authentication results";
                // Authentication failed due to request failure
            }
        }
    };

    private ProveAuth proveAuth;

    public MyAuthenticator(Context context) {
        proveAuth = ProveAuth.builder()
          .withAuthFinishStep(authFinishStep)
			    .withOtpFallback(otpStartStep, otpFinishStep)
          .withContext(context)
          .build();
    }

    public void authenticate() throws IOException, ProveAuthException {
        AuthStartResponse response = backend.authStart("My Prove Auth App");

        proveAuth.authenticate(response.getAuthToken());
    }
}

public void authenticate() throws IOException, ProveAuthException {
      // NOTE: blocking method proveAuth.authenticate() should be run in background thread
      executor.submit(() -> {
          AuthStartResponse response = backend.authStart("My Prove Auth App");
          proveAuth.authenticate(response.getAuthToken());
      }
}

Validate the mobile phone

In the AuthFinishStep, specify a function to call once the possession checks are complete on the mobile phone. This endpoint on your back end server calls the Validate() function to check phone number validation. If it was successful, the server returns the results from the Challenge() function, including customer information.

// Send a verify request to get return customer information.
void verify(String: authId) {
  YourBackendClient backend = new YourBackendClient(); // Backend API client

  // Build your VerifyRequest object
  VerifyRequest verifyRequest = new VerifyRequest(authId, ...);

  // Send a verify request to your backend server to get return customer information.
  VerifyResponse response = backend.verify(verifyRequest);

  // TODO: define your VerifyResponse object to parse customer information from the response
  String firstName = response.getFirstName();
  String lastName = response.getLastName();

  // Pre-fill customer information to your Android App UI, for example:
  firstNameEditText.setText(firstName);
  lastNameEditText.setText(lastName);
}

Configure OTP

To use the Resend/Retry/Phone Change features, you need to install the Android SDK version 6.5.0 or later.

To set the One-Time Password (OTP) handler, withOtpFallback(otpStart: otpStartStep, otpFinish: otpFinishStep), requires implementing the OtpStartStep and OtpFinishStep.The OTP session has a two minute timeout from when it’s sent through SMS to when the customer can enter in the OTP.

Default
Prompt for Phone Number
Resend
Retry OTP
Phone Number Change

Follow these instructions if you are implementing OTP and you are passing in the phone number on the /v3/start endpoint. In this case, you’ve already prompted for a phone number so you don’t need to prompt for it in the client SDK.Since you passed the phone number in the Start() function, call OtpStartStepCallback.onSuccess(OtpStartInput); to communicate to the SDK you have the customer’s agreement to deliver the SMS message. Ensure you return an instance of OtpStartInput with empty string or null to OtpStartStepCallback.onSuccess() function.

Java

import com.prove.sdk.proveauth.OtpStartInput;
import com.prove.sdk.proveauth.OtpStartStep;
import com.prove.sdk.proveauth.OtpStartStepCallback;
import com.prove.sdk.proveauth.ProveAuthException;

public class NoPromptStart implements OtpStartStep {
    @Override
    public void execute(boolean phoneNumberNeeded, ProveAuthException otpException,
            OtpStartStepCallback callback) {
        // No phone number needed, no need to ask end user for input.
        callback.onSuccess(new OtpStartInput(""));
    }

}

Call the OtpStartStepCallback.onError(); method to communicate to the SDK any issues while trying to obtain the phone number or the OTP. Report an error if the customer cancels the SMS transaction or presses the back button to leave the screen.In the finish step, call the OtpFinishStepCallback.onSuccess(OtpFinishInput); method to return the collected OTP value wrapped in OtpFinishInput.

Java

import com.prove.sdk.proveauth.OtpFinishInput;
import com.prove.sdk.proveauth.OtpFinishStep;
import com.prove.sdk.proveauth.OtpFinishStepCallback;
import com.prove.sdk.proveauth.OtpValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class NoPromptFinish implements OtpFinishStep {
    @Override
    public void execute(@Nullable ProveAuthException otpException,
            OtpFinishStepCallback otpFinishStepCallback) {
        // If error message is found, handle it.
        if (otpException instanceof OtpValidationException) {
            // Set to a variable and display it in a field.
            // In this example, we don't do anything with the error.
            String errorMsg = otpException.getMessage();
        }

        try {
            // Prompt the user for OTP delivered by SMS. You can build UI to provide
            // best UX based on your application and business logic, here we simplify to a
            // generic function named promptForOtpCode which gives us the OTP code.
            String otpCode = promptForOtpCode();
            otpFinishStepCallback.onSuccess(new OtpFinishInput(otpCode));
        } catch (Exception e) {
            // if any issue with the OTP collection from the end user or the user wants to cancel
            // then call onError to exit the flow. In this example we simplify it as catching
            // an exception.
            otpFinishStepCallback.onError();
        }
    }

}

Follow these instructions if implementing MobileAuth and collecting the phone number only if MobileAuth fails. This will implement OTP without allowing for SMS resends and phone number changes. If you do want those capabilities, please reference the subsequent tabs (Resend, Retry OTP, and Phone Number Change).In the start step, call the OtpStartStepCallback.onSuccess(OtpStartInput); method to return the collected phone number to the SDK.

Java

import com.prove.sdk.proveauth.OtpStartInput;
import com.prove.sdk.proveauth.OtpStartStep;
import com.prove.sdk.proveauth.OtpStartStepCallback;
import com.prove.sdk.proveauth.PhoneNumberValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class PromptStart implements OtpStartStep {
    @Override
    public void execute(boolean phoneNumberNeeded, @Nullable ProveAuthException otpException,
            OtpStartStepCallback callback) {
        // If phone number is needed, need to ask the end user for phone number input.
        if (phoneNumberNeeded) {
            // If error message is found around phone number, handle it.
            // The `PhoneNumberValidationException` is ONLY available when `phoneNumberNeeded`
            // has a value.
            if (otpException instanceof PhoneNumberValidationException) {
                // Set to a variable and display it in a field.
                // In this example, we don't do anything with the error.
                String errorMsg = otpException.getMessage();
            }

            try {
                // Prompt the user for phone number to receive OTP SMS. You can build UI to provide
                // best UX based on your application and business logic, here we simplify to a
                // generic function named promptForPhoneNumber which gives us the collected
                // phone number.
                String phoneNumber = promptForPhoneNumber();
                callback.onSuccess(new OtpStartInput(phoneNumber));
            } catch (Exception e) {
                // if any issue with the phone number collection from the end user or the user
                // wants to cancel then call onError to exit the flow.
                // In this example we simplify it as catching an exception.
                callback.onError();
            }
        } else {
            // No phone number needed, no need to ask end user for input.
            callback.onSuccess(new OtpStartInput(""));
        }
    }

}

The finish step is implemented the same as the previous tab:

Java

import com.prove.sdk.proveauth.OtpFinishInput;
import com.prove.sdk.proveauth.OtpFinishStep;
import com.prove.sdk.proveauth.OtpFinishStepCallback;
import com.prove.sdk.proveauth.OtpValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class NoPromptFinish implements OtpFinishStep {
    @Override
    public void execute(@Nullable ProveAuthException otpException,
            OtpFinishStepCallback otpFinishStepCallback) {
        // If error message is found, handle it.
        if (otpException instanceof OtpValidationException) {
            // Set to a variable and display it in a field.
            // In this example, we don't do anything with the error.
            String errorMsg = otpException.getMessage();
        }

        try {
            // Prompt the user for OTP delivered by SMS. You can build UI to provide
            // best UX based on your application and business logic, here we simplify to a
            // generic function named promptForOtpCode which gives us the OTP code.
            String otpCode = promptForOtpCode();
            otpFinishStepCallback.onSuccess(new OtpFinishInput(otpCode));
        } catch (Exception e) {
            // if any issue with the OTP collection from the end user or the user wants to cancel
            // then call onError to exit the flow. In this example we simplify it as catching
            // an exception.
            otpFinishStepCallback.onError();
        }
    }

}

Follow these instructions to allow the customer to request a new OTP via SMS using the same phone number. There is a max of three send attempts including the initial message.The start step is implemented the same as the previous tab:

Java

import com.prove.sdk.proveauth.OtpStartInput;
import com.prove.sdk.proveauth.OtpStartStep;
import com.prove.sdk.proveauth.OtpStartStepCallback;
import com.prove.sdk.proveauth.PhoneNumberValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class PromptStart implements OtpStartStep {
    @Override
    public void execute(boolean phoneNumberNeeded, @Nullable ProveAuthException otpException,
            OtpStartStepCallback callback) {
        // If phone number is needed, need to ask the end user for phone number input.
        if (phoneNumberNeeded) {
            // If error message is found around phone number, handle it.
            // The `PhoneNumberValidationException` is ONLY available when `phoneNumberNeeded`
            // has a value.
            if (otpException instanceof PhoneNumberValidationException) {
                // Set to a variable and display it in a field.
                // In this example, we don't do anything with the error.
                String errorMsg = otpException.getMessage();
            }

            try {
                // Prompt the user for phone number to receive OTP SMS. You can build UI to provide
                // best UX based on your application and business logic, here we simplify to a
                // generic function named promptForPhoneNumber which gives us the collected
                // phone number.
                String phoneNumber = promptForPhoneNumber();
                callback.onSuccess(new OtpStartInput(phoneNumber));
            } catch (Exception e) {
                // if any issue with the phone number collection from the end user or the user
                // wants to cancel then call onError to exit the flow.
                // In this example we simplify it as catching an exception.
                callback.onError();
            }
        } else {
            // No phone number needed, no need to ask end user for input.
            callback.onSuccess(new OtpStartInput(""));
        }
    }

}

You can then send a new OTP SMS to the same phone number by implementing the finish step like this:

Java

import com.prove.sdk.proveauth.OtpFinishInput;
import com.prove.sdk.proveauth.OtpFinishStep;
import com.prove.sdk.proveauth.OtpFinishStepCallback;
import com.prove.sdk.proveauth.OtpValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class MultipleResendFinish implements OtpFinishStep {
    @Override
    public void execute(@Nullable ProveAuthException otpException,
            OtpFinishStepCallback otpFinishStepCallback) {
        // If error message is found, handle it.
        if (otpException instanceof OtpValidationException) {
            // Set to a variable and display it in a field.
            // In this example, we don't do anything with the error.
            String errorMsg = otpException.getMessage();
        }

        // Prompt the user for whether they received the SMS.
        if (promptForResend("Didn't receive the SMS OTP? Click resend button for a new one!")) {
            // If the end user wants to send again to the same phone number call onOtpResend().
            otpFinishStepCallback.onOtpResend();
            return;
        }

        try {
            // Prompt the user for OTP delivered by SMS. You can build UI to provide
            // best UX based on your application and business logic, here we simplify to a
            // generic function named promptForOtpCode which gives us the OTP code.
            String otpCode = promptForOtpCode();
            otpFinishStepCallback.onSuccess(new OtpFinishInput(otpCode));
        } catch (Exception e) {
            // if any issue with the OTP collection from the end user or the user wants to cancel
            // then call onError to exit the flow. In this example we simplify it as catching
            // an exception.
            otpFinishStepCallback.onError();
        }
    }

}

Follow these instructions to allow the customer to re-enter the OTP PIN if they type it wrong. There is a max of 3 attempts. To implement this functionality, you also need to pass in allowOTPRetry=true to the /v3/start endpoint.The start step is implemented the same as either of the the previous tabs - no client side code changes necessary:

Java

import com.prove.sdk.proveauth.OtpStartInput;
import com.prove.sdk.proveauth.OtpStartStep;
import com.prove.sdk.proveauth.OtpStartStepCallback;
import com.prove.sdk.proveauth.PhoneNumberValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class PromptStart implements OtpStartStep {
    @Override
    public void execute(boolean phoneNumberNeeded, @Nullable ProveAuthException otpException,
            OtpStartStepCallback callback) {
        // If phone number is needed, need to ask the end user for phone number input.
        if (phoneNumberNeeded) {
            // If error message is found around phone number, handle it.
            // The `PhoneNumberValidationException` is ONLY available when `phoneNumberNeeded`
            // has a value.
            if (otpException instanceof PhoneNumberValidationException) {
                // Set to a variable and display it in a field.
                // In this example, we don't do anything with the error.
                String errorMsg = otpException.getMessage();
            }

            try {
                // Prompt the user for phone number to receive OTP SMS. You can build UI to provide
                // best UX based on your application and business logic, here we simplify to a
                // generic function named promptForPhoneNumber which gives us the collected
                // phone number.
                String phoneNumber = promptForPhoneNumber();
                callback.onSuccess(new OtpStartInput(phoneNumber));
            } catch (Exception e) {
                // if any issue with the phone number collection from the end user or the user
                // wants to cancel then call onError to exit the flow.
                // In this example we simplify it as catching an exception.
                callback.onError();
            }
        } else {
            // No phone number needed, no need to ask end user for input.
            callback.onSuccess(new OtpStartInput(""));
        }
    }

}

The finish step is implemented the same as either of the the previous tabs - no client side code changes necessary. If the OTP is invalid, the finish step will be called again to prompt the user for a new input. Once the max attempts is reached, the AuthFinish function will be called.

Java

import com.prove.sdk.proveauth.OtpFinishInput;
import com.prove.sdk.proveauth.OtpFinishStep;
import com.prove.sdk.proveauth.OtpFinishStepCallback;
import com.prove.sdk.proveauth.OtpValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class NoPromptFinish implements OtpFinishStep {
    @Override
    public void execute(@Nullable ProveAuthException otpException,
            OtpFinishStepCallback otpFinishStepCallback) {
        // If error message is found, handle it.
        if (otpException instanceof OtpValidationException) {
            // Set to a variable and display it in a field.
            // In this example, we don't do anything with the error.
            String errorMsg = otpException.getMessage();
        }

        try {
            // Prompt the user for OTP delivered by SMS. You can build UI to provide
            // best UX based on your application and business logic, here we simplify to a
            // generic function named promptForOtpCode which gives us the OTP code.
            String otpCode = promptForOtpCode();
            otpFinishStepCallback.onSuccess(new OtpFinishInput(otpCode));
        } catch (Exception e) {
            // if any issue with the OTP collection from the end user or the user wants to cancel
            // then call onError to exit the flow. In this example we simplify it as catching
            // an exception.
            otpFinishStepCallback.onError();
        }
    }

}

Follow these instructions to allow the customer to re-enter their phone number. There is a max of three entries/send attempts.

Manual Request RequiredTo enable phone number change capabilities on your credentials, contact your Prove representative.

The start step is implemented the same as the previous tab:

Java

import com.prove.sdk.proveauth.OtpStartInput;
import com.prove.sdk.proveauth.OtpStartStep;
import com.prove.sdk.proveauth.OtpStartStepCallback;
import com.prove.sdk.proveauth.PhoneNumberValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class PromptStart implements OtpStartStep {
    @Override
    public void execute(boolean phoneNumberNeeded, @Nullable ProveAuthException otpException,
            OtpStartStepCallback callback) {
        // If phone number is needed, need to ask the end user for phone number input.
        if (phoneNumberNeeded) {
            // If error message is found around phone number, handle it.
            // The `PhoneNumberValidationException` is ONLY available when `phoneNumberNeeded`
            // has a value.
            if (otpException instanceof PhoneNumberValidationException) {
                // Set to a variable and display it in a field.
                // In this example, we don't do anything with the error.
                String errorMsg = otpException.getMessage();
            }

            try {
                // Prompt the user for phone number to receive OTP SMS. You can build UI to provide
                // best UX based on your application and business logic, here we simplify to a
                // generic function named promptForPhoneNumber which gives us the collected
                // phone number.
                String phoneNumber = promptForPhoneNumber();
                callback.onSuccess(new OtpStartInput(phoneNumber));
            } catch (Exception e) {
                // if any issue with the phone number collection from the end user or the user
                // wants to cancel then call onError to exit the flow.
                // In this example we simplify it as catching an exception.
                callback.onError();
            }
        } else {
            // No phone number needed, no need to ask end user for input.
            callback.onSuccess(new OtpStartInput(""));
        }
    }

}

You can prompt for a new phone number by implementing the finish step like this:

Java

import com.prove.sdk.proveauth.OtpFinishInput;
import com.prove.sdk.proveauth.OtpFinishStep;
import com.prove.sdk.proveauth.OtpFinishStepCallback;
import com.prove.sdk.proveauth.OtpValidationException;
import com.prove.sdk.proveauth.ProveAuthException;

public class PhoneChangeFinish implements OtpFinishStep {
    @Override
    public void execute(@Nullable ProveAuthException otpException,
            OtpFinishStepCallback otpFinishStepCallback) {
        // If error message is found, handle it.
        if (otpException instanceof OtpValidationException) {
            // Set to a variable and display it in a field.
            // In this example, we don't do anything with the error.
            String errorMsg = otpException.getMessage();
        }

        // Prompt the user for whether they received the SMS.
        if (promptForPhoneNumberChange("Didn't receive the SMS OTP? Try a different phone number.")) {
            // If the end user wants to correct the phone number already in use, or changing to a
            // different phone number to receive the future SMS OTP, call onMobileNumberChange(), and
            // the otpStartStep will re-prompt for phone number input from the end user.
            otpFinishStepCallback.onMobileNumberChange();
            return;
        }

        try {
            // Prompt the user for OTP delivered by SMS. You can build UI to provide
            // best UX based on your application and business logic, here we simplify to a
            // generic function named promptForOtpCode which gives us the OTP code.
            String otpCode = promptForOtpCode();
            otpFinishStepCallback.onSuccess(new OtpFinishInput(otpCode));
        } catch (Exception e) {
            // if any issue with the OTP collection from the end user or the user wants to cancel
            // then call onError to exit the flow. In this example we simplify it as catching
            // an exception.
            otpFinishStepCallback.onError();
        }
    }

}

Verify the Customer Information

Once the customer has made any edits to their pre-fill information, you should submit that information to the backend server so the Complete() call can then verify the customer information.

// Send request to the backend to verify customer information.
SendInfoResponse sendInfo(String firstName, String lastName) {
  YourBackendClient backend = new YourBackendClient(); // Backend API client

  // TODO: Build your SendInfoRequest object
  SendInfoRequest sendInfoRequest = new SendInfoRequest(firstName, lastName, ...);

  // Send a sendInfoRequest to your backend server to get return customer information.
  SendInfoResponse response = backend.verify(sendInfoRequest);

  // TODO: define your own SendInfoResponse object to parse the response
  return response;
}

Installation

Prove provides the iOS SDK in Swift. It has a download size of 2.5 MB and an install size of 1.5 MB for the minimum required components. It relies on iOS native APIs. The iOS SDK supports the earlier three major versions. Prove has seen successful transactions with iOS v11.

Xcode RequirementTo integrate with our iOS SDKs, Apps must be built with Xcode 16.0 or later.

Prove manages a repository with the libraries to enable integration. You can install the SDK using either CocoaPods or Swift Package Manager.

CocoaPods
Swift Package Manager

Execute the following to import CocoaPod from the Prove pod repository:

shell

# Run this command to install the cocoapods-art plugin (authored by Artifactory)
gem install cocoapods-art

# Run this command to add the Prove pod repository
pod repo-art add prove.jfrog.io https://prove.jfrog.io/artifactory/api/pods/libs-public-cocoapods

# In your Podfile, paste in the Prove pod repository as a source
plugin 'cocoapods-art', :sources => [
    'prove.jfrog.io'
]

# In your Podfile, paste in the SDK pods
pod 'ProveAuth', '6.6.0'

# Run this command to install the SDK pods
pod install

Step 1: Connect to JFrog Registry

Set up the registry globally (required for both Xcode UI and Package.swift):

swift package-registry set --global "https://prove.jfrog.io/artifactory/api/swift/libs-public-swift"
swift package-registry login "https://prove.jfrog.io/artifactory/api/swift/libs-public-swift"
# Press Enter when prompted for access token

Public Registry This is a publicly accessible registry - no password or access token is needed. Simply press Enter when prompted for an access token.

The registry connection is configured via command line only. Once this setup is complete, you can add packages using either Xcode UI or Package.swift.

Step 2: Adding Dependencies

Method 1: Using Xcode UI

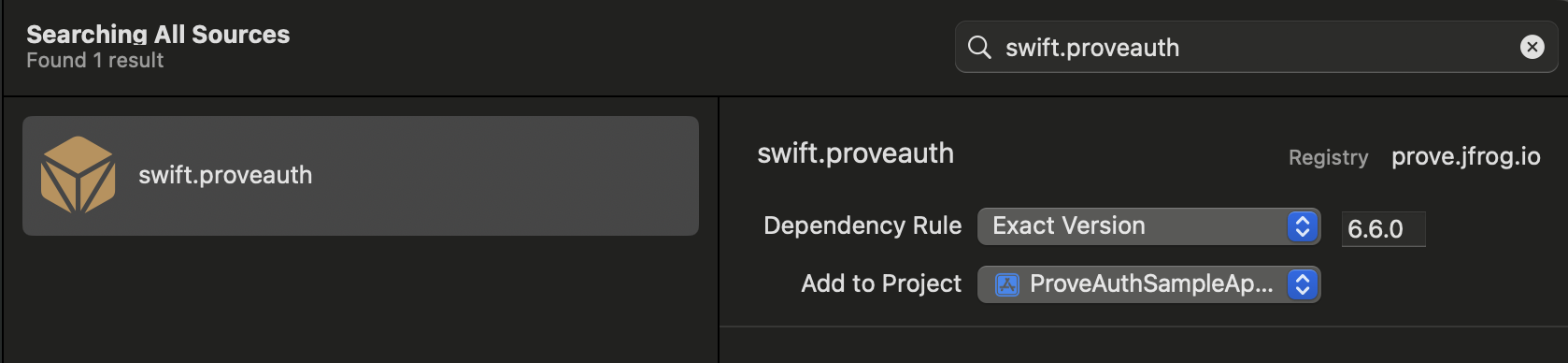

In Xcode, go to File → Add Package Dependencies
Search for the package you want (e.g., swift.proveauth)
Select the version and add to your target

The latest stable version is 6.6.0. Select “Exact Version” for production applications to ensure consistent builds.

Once the command line setup is complete, you only need to enter the package name (e.g., swift.proveauth) in Xcode - no need to enter the full registry URL to Xcode.

Method 2: Using Package.swift

Add dependencies to your Package.swift file:

Swift

// swift-tools-version: 5.9
import PackageDescription

let package = Package(
    name: "YourApp",
    platforms: [.iOS(.v12)],
    dependencies: [
        .package(id: "swift.proveauth", from: "6.6.0"),
    ],
    targets: [
        .target(
            name: "YourApp",
            dependencies: [
                .product(name: "ProveAuth", package: "swift.proveauth"),
            ]
        )
    ]
)

Then run the following command to resolve and fetch the dependencies:

swift package resolve

Send the type of flow: mobile

Unlike the Web SDK, when using the iOS SDK, use the mobile flow. Pass mobile to the Start() function on the server. In a mobile flow, Mobile Auth executes first and if that fails, performs one-time password (OTP) validation on the mobile phone.In the mobile flow, once either Mobile Auth or the OTP validation is complete, the AuthFinishStep function executes.

Mobile AuthIn order for Mobile Auth to succeed, the customer needs to disable the VPN and Private Relay on iOS.

`Authenticate()`

The SDK requires an authToken as a parameter for the Authenticate() function. This token returns from the Start() call of the server-side SDK. The token is session specific so it’s used for a single flow. It also expires after 15 minutes.

Retrieve `authToken`

To start the flow, send a request to your back end server with the phone number, flow type, and an optional challenge. Use either the date of birth, YYYY-MM-DD, or the last four digits of the social security number.

Swift

// The below example uses native iOS URLSession, but any other
// alternative networking approaches should also work
func initialize(phoneNumber: String, ssn: String, flowType: String, completion: @escaping (Result\<String, Error>) -> Void) {
    guard let url = URL(string: "\(backendUrl)/initialize") else {
        completion(.failure(URLError(.badURL)))
        return
    }
    var request = URLRequest(url: url)
    request.httpMethod = "POST"
    request.addValue("application/json", forHTTPHeaderField: "Accept")
    request.addValue("application/json", forHTTPHeaderField: "Content-Type")
    // Set up the request body
    let body: [String: Any] = [
        "phoneNumber": phoneNumber,
        "flowType": flowType,
        "ssn": ssn
    ]
    do {
        request.httpBody = try JSONSerialization.data(withJSONObject: body, options: \[])
    } catch {
        completion(.failure(error))
        return
    }
    // Perform the request
    let task = URLSession.shared.dataTask(with: request) { \_, response, error in
        // Handle network or connection errors
        if let error = error {
            completion(.failure(error))
            return
        }
        do {
            if let json = try JSONSerialization.jsonObject(with: data, options: \[]) as? [String: Any],
               let authToken = json["authToken"] as? String {
                completion(.success(authToken))
            } else {
                let parsingError = NSError(domain: "", code: 0, userInfo: [NSLocalizedDescriptionKey : "Failed to parse JSON or authToken is missing"])
                completion(.failure(parsingError))
            }
        } catch {
            completion(.failure(error))
        }
    }
    // Start the network call
    task.resume()
}

Setup authenticator

Once you have the authToken, build the authenticator for the mobile flow.

Swift

// Object implementing ProveAuthFinishStep protocols
let finishStep = FinishAuthStep()

// Objects implementing OtpStartStep/OtpFinishStep protocols
let otpStartStep = MobileOtpStartStep()
let otpFinishStep = MobileOtpFinishStep()

let proveAuthSdk: ProveAuth
proveAuthSdk = ProveAuth.builder(authFinish: finishStep)
  .withOtpFallback(otpStart: otpStartStep, otpFinish: otpFinishStep)
  .build()

If a mobile data connection is unavailable during testing, use the Builder class. It permits simulated successful session results while connected to a Wi-Fi network. Testing using a Wi-Fi connection is useful in the Sandbox environment.

Swift

proveAuthSdk = ProveAuth.builder(authFinish: finishStep)
  .withMobileAuthTestMode() // Test mode flag
  .build()

Performing the authentication

The Prove Auth object is thread safe and used as a singleton. Most Prove Auth methods are blocking and therefore can’t execute in the main app thread. The app employs an executor service with a minimum of two threads to manage threads due to the ability to process concurrent blocking requests.

Swift

// authToken retrieved from your server via StartAuthRequest
proveAuthSdk.authenticate(authToken) { error in
  DispatchQueue.main.async {
    self.messages.finalResultMessage = "ProveAuth.authenticate returned error: \(error.localizedDescription)"
    print(self.messages.finalResultMessage)
  }
}

Validate the mobile phone

In the AuthFinishStep, specify a function to call once the possession checks complete on the mobile phone. In the following code, notice an endpoint called /verify. This endpoint on your back end server calls the Validate() function to validate the phone number. If unsuccessful, the server calls the Challenge() function and then returns the results, including customer information. Refer to the following example fields that return and then prefill on a form for the customer to verify.

Swift

// Send a verify request to get return customer information.
// The below example uses native iOS URLSession, but any other
// alternative networking approaches should also work
func verify(String: authId, completion: @escaping (Error?) -> Void) {
    guard let url = URL(string: "\(backendUrl)/verify") else {
        completion(URLError(.badURL))
        return
    }
    // Create the request
    var request = URLRequest(url: url)
    request.httpMethod = "POST"
    request.addValue("application/json", forHTTPHeaderField: "Accept")
    request.addValue("application/json", forHTTPHeaderField: "Content-Type")
    // Set up the request body (empty JSON object) - authId is not needed so you can ignore.
    let body: [String: Any] = ["authId": authId]
    do {
        request.httpBody = try JSONSerialization.data(withJSONObject: body, options: \[])
    } catch {
        completion(error)
        return
    }
    // Perform the request
    let task = URLSession.shared.dataTask(with: request) { \_, response, error in
        if let error = error {
            completion(error)
            return
        }
        // Parse the response
        do {
            if let json = try JSONSerialization.jsonObject(with: data, options: \[]) as? [String: Any],
               let firstName = json["firstName"] as? String,
               let lastName = json["lastName"] as? String {
                // Update the UI on the main thread
                DispatchQueue.main.async {
                    // Update your UI with the pre-fill customer information
                    // For example, assuming you have IBOutlet references for your text fields
                    self.firstNameInput.text = firstName
                    self.lastNameInput.text = lastName
                }
                completion(nil)
            } else {
                let parsingError = NSError(domain: "", code: 0, userInfo: [NSLocalizedDescriptionKey: "Failed to parse JSON"])
                completion(parsingError)
            }
        } catch {
            completion(error)
        }
    }
    // Start the network call
    task.resume()
}

Configure OTP

To use the Resend/Retry/Phone Change features, you need to install the iOS SDK version 6.5.1 or later.

Default
Prompt for Phone Number
Resend
Retry OTP
Phone Number Change

Follow these instructions if you are implementing OTP and you are passing in the phone number on the /v3/start endpoint. In this case, you’ve already prompted for a phone number so you don’t need to prompt for it in the client SDK.Since you passed the phone number in the Start() function, call callback.onSuccess(input: nil) to communicate to the SDK you have the customer’s agreement to deliver the SMS message.

Swift

class OtpStartStepNoPrompt: OtpStartStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpStartStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    // Implement this method to handle phone number collection for SMS OTP,
    // or to obtain user confirmation for initiating an SMS message.
    func execute(
        phoneNumberNeeded: Bool, phoneValidationError: ProveAuthError?, callback: OtpStartStepCallback
    ) {
        self.callback = callback
        // Since no phone number is needed, don't prompt the user.
        callback.onSuccess(input: nil)
    }
}

Call the callback.onError() method to communicate to the SDK any issues while trying to obtain the phone number or the OTP. Report an error if the customer cancels the SMS transaction or presses the back button to leave the screen.

Swift

class OtpFinishStepNoPrompt: OtpFinishStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpFinishStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    // Implement this method to collect the OTP value delivered via SMS.
    func execute(otpError: ProveAuthError?, callback: OtpFinishStepCallback) {
        self.callback = callback
        // Handle the OTP validation error if present.
        // Signal to UI components to display OtpFinishView
        DispatchQueue.main.async {
            if case .otpValidationError = otpError {
                print("found otpError: \(String(describing: otpError?.localizedDescription))")
                // Signal to your UI components that the last provided OTP is invalid
                self.sheetObservable.isOtpValidationError = true
            } else {
                self.sheetObservable.isOtpValidationError = false
            }
            self.sheetObservable.isOtpFinishActive = true
        }
    }

    // Provide the collected OTP value to the SDK for validation.
    func handleOtp(_ otp: String) {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        let otpFinishInput = OtpFinishInput(otp: otp)
        callback.onSuccess(input: otpFinishInput)
    }

    // Notify the SDK of any issues encountered while obtaining the OTP value or if the user cancels the OTP flow.
    func handleOtpFinishError() {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        callback.onError()
    }
}

Follow these instructions if implementing MobileAuth and collecting the phone number only if MobileAuth fails. This will implement OTP without allowing for SMS resends and phone number changes. If you do want those capabilities, please reference the subsequent tabs (Resend, Retry OTP, and Phone Number Change).In the start step, call the callback.onSuccess(input: otpStartInput) method to return the collected phone number to the SDK.

Swift

import Foundation
import ProveAuth
import SwiftUI

class OtpStartStepWithPrompt: OtpStartStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpStartStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    func execute(
        phoneNumberNeeded: Bool, phoneValidationError: ProveAuthError?, callback: OtpStartStepCallback
    ) {
        self.callback = callback
        if !phoneNumberNeeded {
            // If no phone number is needed, then don't prompt the user.
            callback.onSuccess(input: nil)
        } else {
            DispatchQueue.main.async {
                // If a phone number validation error is detected, ensure it is handled to provide feedback to the user.
                if case .phoneNumberValidationError = phoneValidationError {
                    print(
                        "found phoneValidationError: \(String(describing: phoneValidationError?.localizedDescription))"
                    )
                    // Update UI components to display OtpStartView with the phone number validation error.
                    self.sheetObservable.isPhoneValidationError = true
                } else {
                    self.sheetObservable.isPhoneValidationError = false
                }
                // Update UI components to display OtpStartView if a phone number is needed.
                self.sheetObservable.isOtpStartActive = true
            }
        }
    }

    // Return collected phone number to the SDK
    func handlePhoneNumber(phoneNumber: String) {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }

        let otpStartInput = OtpStartInput(phoneNumber: phoneNumber)
        // This is how you pass collected phone number to SDK
        callback.onSuccess(input: otpStartInput)
    }

    // Communicate any issues encountered while trying to obtain the phone number to the SDK.
    // Error should be reported if the customer explicitly cancels the SMS OTP transaction
    // or presses the back button to exit out the SMS OTP start step screen.
    func handleOtpStartError() {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }
        callback.onError()
    }
}

The finish step is implemented the same as the previous tab:

Swift

class OtpFinishStepNoPrompt: OtpFinishStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpFinishStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    // Implement this method to collect the OTP value delivered via SMS.
    func execute(otpError: ProveAuthError?, callback: OtpFinishStepCallback) {
        self.callback = callback
        // Handle the OTP validation error if present.
        // Signal to UI components to display OtpFinishView
        DispatchQueue.main.async {
            if case .otpValidationError = otpError {
                print("found otpError: \(String(describing: otpError?.localizedDescription))")
                // Signal to your UI components that the last provided OTP is invalid
                self.sheetObservable.isOtpValidationError = true
            } else {
                self.sheetObservable.isOtpValidationError = false
            }
            self.sheetObservable.isOtpFinishActive = true
        }
    }

    // Provide the collected OTP value to the SDK for validation.
    func handleOtp(_ otp: String) {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        let otpFinishInput = OtpFinishInput(otp: otp)
        callback.onSuccess(input: otpFinishInput)
    }

    // Notify the SDK of any issues encountered while obtaining the OTP value or if the user cancels the OTP flow.
    func handleOtpFinishError() {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        callback.onError()
    }
}

Swift

import Foundation
import ProveAuth
import SwiftUI

class OtpStartStepWithPrompt: OtpStartStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpStartStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    func execute(
        phoneNumberNeeded: Bool, phoneValidationError: ProveAuthError?, callback: OtpStartStepCallback
    ) {
        self.callback = callback
        if !phoneNumberNeeded {
            // If no phone number is needed, then don't prompt the user.
            callback.onSuccess(input: nil)
        } else {
            DispatchQueue.main.async {
                // If a phone number validation error is detected, ensure it is handled to provide feedback to the user.
                if case .phoneNumberValidationError = phoneValidationError {
                    print(
                        "found phoneValidationError: \(String(describing: phoneValidationError?.localizedDescription))"
                    )
                    // Update UI components to display OtpStartView with the phone number validation error.
                    self.sheetObservable.isPhoneValidationError = true
                } else {
                    self.sheetObservable.isPhoneValidationError = false
                }
                // Update UI components to display OtpStartView if a phone number is needed.
                self.sheetObservable.isOtpStartActive = true
            }
        }
    }

    // Return collected phone number to the SDK
    func handlePhoneNumber(phoneNumber: String) {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }

        let otpStartInput = OtpStartInput(phoneNumber: phoneNumber)
        // This is how you pass collected phone number to SDK
        callback.onSuccess(input: otpStartInput)
    }

    // Communicate any issues encountered while trying to obtain the phone number to the SDK.
    // Error should be reported if the customer explicitly cancels the SMS OTP transaction
    // or presses the back button to exit out the SMS OTP start step screen.
    func handleOtpStartError() {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }
        callback.onError()
    }
}

You can then send a new OTP SMS to the same phone number by implementing the finish step like this:

Swift

class OtpFinishStepMultipleResend: OtpFinishStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpFinishStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    // Implement this method to collect the OTP value delivered in the SMS message.
    func execute(otpError: ProveAuthError?, callback: OtpFinishStepCallback) {
        self.callback = callback
        // Handle the OTP validation error if present.
        // Update your UI to display the OtpFinishView
        DispatchQueue.main.async {
            if case .otpValidationError = otpError {
                print("found otpError: \(String(describing: otpError?.localizedDescription))")
                // Update your UI to indicate that the provided OTP is invalid
                self.sheetObservable.isOtpValidationError = true
            } else {
                self.sheetObservable.isOtpValidationError = false
            }
            self.sheetObservable.isOtpFinishActive = true
        }
    }

    // Return the OTP value to the SDK
    func handleOtp(_ otp: String) {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        let otpFinishInput = OtpFinishInput(otp: otp)
        callback.onSuccess(input: otpFinishInput)
    }

    // Communicate to the SDK any issues when host app trys to obtain the OTP value
    // or when users cancel the OTP flow
    func handleOtpFinishError() {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        callback.onError()
    }

    // Call this method to request a new OTP code for the same mobile number.
    func sendNewOtp() {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }
        callback.onOtpResend()
    }
}

Swift

import Foundation
import ProveAuth
import SwiftUI

class OtpStartStepWithPrompt: OtpStartStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpStartStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    func execute(
        phoneNumberNeeded: Bool, phoneValidationError: ProveAuthError?, callback: OtpStartStepCallback
    ) {
        self.callback = callback
        if !phoneNumberNeeded {
            // If no phone number is needed, then don't prompt the user.
            callback.onSuccess(input: nil)
        } else {
            DispatchQueue.main.async {
                // If a phone number validation error is detected, ensure it is handled to provide feedback to the user.
                if case .phoneNumberValidationError = phoneValidationError {
                    print(
                        "found phoneValidationError: \(String(describing: phoneValidationError?.localizedDescription))"
                    )
                    // Update UI components to display OtpStartView with the phone number validation error.
                    self.sheetObservable.isPhoneValidationError = true
                } else {
                    self.sheetObservable.isPhoneValidationError = false
                }
                // Update UI components to display OtpStartView if a phone number is needed.
                self.sheetObservable.isOtpStartActive = true
            }
        }
    }

    // Return collected phone number to the SDK
    func handlePhoneNumber(phoneNumber: String) {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }

        let otpStartInput = OtpStartInput(phoneNumber: phoneNumber)
        // This is how you pass collected phone number to SDK
        callback.onSuccess(input: otpStartInput)
    }

    // Communicate any issues encountered while trying to obtain the phone number to the SDK.
    // Error should be reported if the customer explicitly cancels the SMS OTP transaction
    // or presses the back button to exit out the SMS OTP start step screen.
    func handleOtpStartError() {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }
        callback.onError()
    }
}

Swift

class OtpFinishStepNoPrompt: OtpFinishStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpFinishStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    // Implement this method to collect the OTP value delivered via SMS.
    func execute(otpError: ProveAuthError?, callback: OtpFinishStepCallback) {
        self.callback = callback
        // Handle the OTP validation error if present.
        // Signal to UI components to display OtpFinishView
        DispatchQueue.main.async {
            if case .otpValidationError = otpError {
                print("found otpError: \(String(describing: otpError?.localizedDescription))")
                // Signal to your UI components that the last provided OTP is invalid
                self.sheetObservable.isOtpValidationError = true
            } else {
                self.sheetObservable.isOtpValidationError = false
            }
            self.sheetObservable.isOtpFinishActive = true
        }
    }

    // Provide the collected OTP value to the SDK for validation.
    func handleOtp(_ otp: String) {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        let otpFinishInput = OtpFinishInput(otp: otp)
        callback.onSuccess(input: otpFinishInput)
    }

    // Notify the SDK of any issues encountered while obtaining the OTP value or if the user cancels the OTP flow.
    func handleOtpFinishError() {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        callback.onError()
    }
}

Follow these instructions to allow the customer to re-enter their phone number. There is a max of three entries/send attempts.

Manual Request RequiredTo enable phone number change capabilities on your credentials, contact your Prove representative.

The start step is implemented the same as the previous tab:

Swift

import Foundation
import ProveAuth
import SwiftUI

class OtpStartStepWithPrompt: OtpStartStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpStartStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    func execute(
        phoneNumberNeeded: Bool, phoneValidationError: ProveAuthError?, callback: OtpStartStepCallback
    ) {
        self.callback = callback
        if !phoneNumberNeeded {
            // If no phone number is needed, then don't prompt the user.
            callback.onSuccess(input: nil)
        } else {
            DispatchQueue.main.async {
                // If a phone number validation error is detected, ensure it is handled to provide feedback to the user.
                if case .phoneNumberValidationError = phoneValidationError {
                    print(
                        "found phoneValidationError: \(String(describing: phoneValidationError?.localizedDescription))"
                    )
                    // Update UI components to display OtpStartView with the phone number validation error.
                    self.sheetObservable.isPhoneValidationError = true
                } else {
                    self.sheetObservable.isPhoneValidationError = false
                }
                // Update UI components to display OtpStartView if a phone number is needed.
                self.sheetObservable.isOtpStartActive = true
            }
        }
    }

    // Return collected phone number to the SDK
    func handlePhoneNumber(phoneNumber: String) {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }

        let otpStartInput = OtpStartInput(phoneNumber: phoneNumber)
        // This is how you pass collected phone number to SDK
        callback.onSuccess(input: otpStartInput)
    }

    // Communicate any issues encountered while trying to obtain the phone number to the SDK.
    // Error should be reported if the customer explicitly cancels the SMS OTP transaction
    // or presses the back button to exit out the SMS OTP start step screen.
    func handleOtpStartError() {
        guard let callback = self.callback else {
            print("Error: OtpStartStepCallback is not set ")
            return
        }
        callback.onError()
    }
}

You can prompt for a new phone number by implementing the finish step like this:

Swift

class OtpFinishStepWithPhoneChange: OtpFinishStep {
    @ObservedObject var sheetObservable: SheetObservable
    var callback: OtpFinishStepCallback?

    init(sheetObservable: SheetObservable) {
        self.sheetObservable = sheetObservable
    }

    // Implement this method to collect the OTP value delivered via SMS.
    func execute(otpError: ProveAuthError?, callback: OtpFinishStepCallback) {
        self.callback = callback
        // Handle the OTP validation error if present.
        // Update your UI to display the OTP finish view.
        DispatchQueue.main.async {
            if case .otpValidationError = otpError {
                print("found otpError: \(String(describing: otpError?.localizedDescription))")
                // Update your UI to indicate that the provided OTP is invalid.
                self.sheetObservable.isOtpValidationError = true
            } else {
                self.sheetObservable.isOtpValidationError = false
            }
            self.sheetObservable.isOtpFinishActive = true
        }
    }

    // Return the collected OTP value to the SDK.
    func handleOtp(_ otp: String) {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set ")
            return
        }

        let otpFinishInput = OtpFinishInput(otp: otp)
        callback.onSuccess(input: otpFinishInput)
    }

    // When callback.onMobileNumberChange() is evoked, OtpStartStep will be re-initiated
    // so that end-users can enter a different phone number via OtpStartStep.
    func handleMobileNumberChange() {
        guard let callback = self.callback else {
            print("Error: OtpFinishStepCallback is not set")
            return
        }
        callback.onMobileNumberChange()
    }
}

Verify the Customer Information

Once the customer has made any edits to their prefill information, submit that information to the back end server so the Complete() call can then verify the customer information.

Swift

// Send request to the backend to verify customer information.
// The below example uses native iOS URLSession, but any other
// alternative networking approaches should also work
func sendInfo(firstName: String, lastName: String, completion: @escaping (Result\<[String:Any], Error>) -> Void) {
    guard let url = URL(string: "\(backendUrl)/finish") else {
        completion(.failure(URLError(.badURL)))
        return
    }
    var request = URLRequest(url: url)
    request.httpMethod = "POST"
    request.addValue("application/json", forHTTPHeaderField: "Accept")
    request.addValue("application/json", forHTTPHeaderField: "Content-Type")
    // Set up the request body
    let body: [String: Any] = [
        "firstName": firstName,
        "lastName": lastName
    ]
    do {
        request.httpBody = try JSONSerialization.data(withJSONObject: body, options: \[])
    } catch {
        completion(.failure(error))
        return
    }
    let task = URLSession.shared.dataTask(with: request) { \_, response, error in
        // Handle network or connection errors
        if let error = error {
            completion(.failure(error))
            return
        }
        do {
            if let results = try JSONSerialization.jsonObject(with: data, options: \[]) as? [String: Any] {
                completion(.success(results))
            } else {
                let parsingError = NSError(domain: "", code: 0, userInfo: [NSLocalizedDescriptionKey : "Failed to parse JSON or authToken is missing"])
                completion(.failure(parsingError))
            }
        } catch {
            completion(.failure(error))
        }
    }
    // Start the network call
    task.resume()
}

Supported languages

Prove provides client web SDKs in the following languages: TypeScript and JavaScript.

Installation

The Prove Platform Web SDK has an unpacked size of 171 KB, and a single dependency: @prove-identity/mobile-auth. Install the client-side SDK of your choice by running a command in your terminal, or by using a dependency management tool specific to your project.

# Run this command to install the package (ensure you have the latest version).
npm install @prove-identity/prove-auth@3.1.1

Angular TypeScript Compilation ErrorSome Angular projects may experience TypeScript compilation errors when building with the Prove Web SDK. This is a known issue that affects various Angular versions.To correct this, add or update the skipLibCheck setting in your tsconfig.json file:

tsconfig.json

{
  "compilerOptions": {
    "skipLibCheck": true,
    // ... other options
  }
}

This setting tells TypeScript to skip type checking of declaration files (.d.ts files) from external libraries, which resolves the compilation issues while maintaining type safety for your own code.Affected Versions:

Angular 17.x (confirmed with Angular 17.3.3)
Other Angular versions may also be affected

Find the type of flow: mobile or desktop

You can find if the customer is on a mobile or desktop browser using this example. If the isMobile is true, pass mobile to the Start() function on the server, otherwise you can pass desktop:

// Check if the customer is on a mobile or desktop browser.
const authCheck = new proveAuth.AuthenticatorBuilder().build();
let isMobile = authCheck.isMobileWeb()

In a mobile flow, Mobile Auth executes first and if that fails, performs one-time password (OTP) validation on the mobile phone. In a desktop flow, Instant Link sends a text message to the mobile phone for verification.In the mobile flow, once either Mobile Auth or the OTP validation completes, the AuthFinishStep function finishes.

Mobile AuthIn order for Mobile Auth to succeed:

Disable VPN.
Disable Private Relay on iOS.

When testing, you can ignore any Chrome error messages that mention ERR_TUNNEL_CONNECTION_FAILED - this is due to the VPN, but the SDK fallbacks to OTP.

In the desktop flow, a WebSocket opens for 3 minutes on the desktop browser while waiting for the customer to select the link in the text message. Once clicked, the WebSocket closes and the AuthFinishStep function finishes.

`Authenticate()`

The SDK requires an authToken as a parameter for the Authenticate() function. This token returns from the Start() call of the server-side SDK. The token is session specific, limiting it to a single flow. It also expires after 15 minutes.

Retrieve `authToken`

Send a request to your back end server with the phone number, flow type, and an optional challenge to start the flow. This can either be the date of birth or last four digits of the social security number.

async function initialize(phoneNumber, ssn, flowType) {
  const response = await fetch(backendUrl + "/initialize", {
    method: "POST",
    headers: {
      Accept: "application/json",
      "Content-Type": "application/json",
    },
    body: JSON.stringify({
      phoneNumber: phoneNumber,
      flowType: flowType,
      ssn: ssn,
    }),
  });

  const rsp = await response.json();
  const authToken = rsp.authToken;

  return authToken;
}

Setup authenticator

Once you have the authToken, build the authenticator for both the mobile and desktop flows.

Mobile Auth Implementations OnlyIf your application uses Content Security Policy headers, you must configure them to allow WebSocket connections to Prove’s authentication services:Sandbox Environment

https://device.uat.proveapis.com:4443
https://device.uat.proveapis.com
http://device.uat.proveapis.com:4443
http://device.uat.proveapis.com

Production Environment

https://device.proveapis.com:4443
https://device.proveapis.com
http://device.proveapis.com:4443
http://device.proveapis.com
https://auth.svcs.verizon.com:22790

Failure to configure these properly will prevent Mobile Auth functionality from working correctly in web flows.

async function authenticate(isMobileWeb, authToken) {
  // Set up the authenticator for either mobile or desktop flow.
  let builder = new proveAuth.AuthenticatorBuilder();

  if (isMobileWeb) {
    // Set up Mobile Auth and OTP.
    builder = builder
      .withAuthFinishStep((input) => verify(input.authId))
      .withOtpFallback(otpStart, otpFinish);
  } else {
    // Set up Instant Link.
    builder = builder
      .withAuthFinishStep((input) => verify(input.authId))
      .withInstantLinkFallback(instantLink)
      .withRole("secondary");
  }

  const authenticator = builder.build();

  // Authenticate with the authToken.
  return authenticator.authenticate(authToken);
}

Validate the mobile phone

In the AuthFinishStep, specify a function to call once the possession checks complete on the mobile phone. This endpoint on your back end server calls the Validate() function to validate the phone number. If it was successful, the server returns the results from the Challenge() function including customer information. Refer to the following example fields that return and then prefill on a form for the customer to verify. The AuthFinishStep then completes. If a user cancels, the server makes a call to the Validate() function and returns success=false.

// Send a verify request to get return customer information.
async function verify() {
  const response = await fetch(backendUrl + "/verify", {
    method: "POST",
    headers: {
      Accept: "application/json",
      "Content-Type": "application/json",
    },
    body: JSON.stringify({}),
  });

  const results = await response.json();
  const rsp = JSON.stringify(results);

  const firstName = document.getElementById("firstNameInput");
  const lastName = document.getElementById("lastNameInput");

  firstName.value = rsp.firstName;
  lastName.value = rsp.lastName;

  return null;
}

Configure OTP

To use the Resend/Retry/Phone Change features, you need to install the Web SDK version 2.15.1 or later.

To set the One-Time Password (OTP) handler, withOtpFallback(startStep: OtpStartStep | OtpStartStepFn, finishStep: OtpFinishStep | OtpFinishStepFn), requires implementing the OtpStartStep and OtpFinishStep. When returning the phone number in the functions, ensure you return an object with the field phoneNumber to the resolve() function.The OTP session has a two minute timeout from when it’s sent through Short Message Service (SMS) to when the customer can enter in the OTP.

Default
Prompt for Phone Number
Resend
Retry OTP
Phone Number Change

Follow these instructions if you are implementing OTP and you are passing in the phone number on the /v3/start endpoint. In this case, you’ve already prompted for a phone number so you don’t need to prompt for it in the client SDK.Since you passed the phone number in the Start() function, call resolve(null) to communicate to the SDK you have the customer’s agreement to deliver the SMS message. Ensure you return an object to resolve() function.

function otpStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // Since no phone number is needed, don't prompt the user.
    resolve(null);
  });
}

Call the reject('some error message') method to communicate to the SDK any issues while trying to obtain the phone number or the OTP. Report an error if the customer cancels the SMS transaction or presses the back button to leave the screen.In the finish step, call the resolve(result: OtpFinishResult) method to return the collected OTP value in which result variable has OnSuccess value for OtpFinishResultType and the OTP value wrapped in OtpFinishInput.

function otpFinishStep(otpError) {
  return new Promise((resolve, reject) => {
    // If error message is found, handle it.
    if (otpError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = otpError.message;
    }

    // Prompt the user for whether they received the SMS.
    // Typically, this is a page that shows the OTP already. We are simplifying
    // it by requiring an input.
    var input = confirm('Did you receive a text message?');
    if (!input) {
      // Close the modal if a text message was not received.
      return;
    }

    // Prompt the user for the OTP.
    var otp = prompt('Enter OTP code:');
    if (otp) {
      // If the input is valid and the user clicked `OK`, return the OTP.
      resolve({
        input: { otp }, // OTP value
        resultType: 0, // OnSuccess enum type = 0
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

Follow these instructions if implementing MobileAuth and collecting the phone number only if MobileAuth fails. This will implement OTP without allowing for SMS resends and phone number changes. If you do want those capabilities, please reference the subsequent tabs (Resend, Retry OTP, and Phone Number Change).In the start step, call the resolve(input: OtpStartInput) method to return the collected phone number to the SDK.

function otpStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // If no phone number is needed, then don't prompt the user.
    if (!phoneNumberNeeded) {
      resolve(null);

      return;
    }

    // If error message is found around phone number, handle it.
    // The `phoneValidationError` is ONLY available when `phoneNumberNeeded`
    // has a value.
    if (phoneValidationError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = phoneValidationError.message;
    }

    // Prompt the user for the phone number.
    var input = prompt('Enter phone number:');
    if (input) {
      // If the input is valid and the user clicked `OK`, return the phone
      // number.
      resolve({
        phoneNumber: input,
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

The finish step is implemented the same as the previous tab:

function otpFinishStep(otpError) {
  return new Promise((resolve, reject) => {
    // If error message is found, handle it.
    if (otpError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = otpError.message;
    }

    // Prompt the user for whether they received the SMS.
    // Typically, this is a page that shows the OTP already. We are simplifying
    // it by requiring an input.
    var input = confirm('Did you receive a text message?');
    if (!input) {
      // Close the modal if a text message was not received.
      return;
    }

    // Prompt the user for the OTP.
    var otp = prompt('Enter OTP code:');
    if (otp) {
      // If the input is valid and the user clicked `OK`, return the OTP.
      resolve({
        input: { otp }, // OTP value
        resultType: 0, // OnSuccess enum type = 0
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

function otpStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // If no phone number is needed, then don't prompt the user.
    if (!phoneNumberNeeded) {
      resolve(null);

      return;
    }

    // If error message is found around phone number, handle it.
    // The `phoneValidationError` is ONLY available when `phoneNumberNeeded`
    // has a value.
    if (phoneValidationError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = phoneValidationError.message;
    }

    // Prompt the user for the phone number.
    var input = prompt('Enter phone number:');
    if (input) {
      // If the input is valid and the user clicked `OK`, return the phone
      // number.
      resolve({
        phoneNumber: input,
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

You can then send a new OTP SMS to the same phone number by implementing the finish step like this:

function otpFinishStep(otpError) {
  return new Promise((resolve, reject) => {
    // If error message is found, handle it.
    if (otpError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = otpError.message;
    }

    // Prompt the user for whether they received the SMS.
    // Typically, this is a page that shows the OTP already. We are simplifying
    // it by requiring an input.
    var input = confirm('Did you receive a text message?');
    if (!input) {
      // If `Cancel`, then resend to the same phone number.
      resolve({
        resultType: 1, // OnResendOtp enum type = 1
      });

      return;
    }

    // Prompt the user for the OTP.
    var otp = prompt('Enter OTP code:');
    if (otp) {
      // If the input is valid and the user clicked `OK`, return the OTP.
      resolve({
        input: { otp }, // OTP value
        resultType: 0, // OnSuccess enum type = 0
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

function otpStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // If no phone number is needed, then don't prompt the user.
    if (!phoneNumberNeeded) {
      resolve(null);

      return;
    }

    // If error message is found around phone number, handle it.
    // The `phoneValidationError` is ONLY available when `phoneNumberNeeded`
    // has a value.
    if (phoneValidationError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = phoneValidationError.message;
    }

    // Prompt the user for the phone number.
    var input = prompt('Enter phone number:');
    if (input) {
      // If the input is valid and the user clicked `OK`, return the phone
      // number.
      resolve({
        phoneNumber: input,
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

function otpFinishStep(otpError) {
  return new Promise((resolve, reject) => {
    // If error message is found, handle it.
    if (otpError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = otpError.message;
    }

    // Prompt the user for whether they received the SMS.
    // Typically, this is a page that shows the OTP already. We are simplifying
    // it by requiring an input.
    var input = confirm('Did you receive a text message?');
    if (!input) {
      // Close the modal if a text message was not received.
      return;
    }

    // Prompt the user for the OTP.
    var otp = prompt('Enter OTP code:');
    if (otp) {
      // If the input is valid and the user clicked `OK`, return the OTP.
      resolve({
        input: { otp }, // OTP value
        resultType: 0, // OnSuccess enum type = 0
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

Follow these instructions to allow the customer to re-enter their phone number. There is a max of three entries/send attempts.

Manual Request RequiredTo enable phone number change capabilities on your credentials, contact your Prove representative.

The start step is implemented the same as the previous tab:

function otpStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // If no phone number is needed, then don't prompt the user.
    if (!phoneNumberNeeded) {
      resolve(null);

      return;
    }

    // If error message is found around phone number, handle it.
    // The `phoneValidationError` is ONLY available when `phoneNumberNeeded`
    // has a value.
    if (phoneValidationError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = phoneValidationError.message;
    }

    // Prompt the user for the phone number.
    var input = prompt('Enter phone number:');
    if (input) {
      // If the input is valid and the user clicked `OK`, return the phone
      // number.
      resolve({
        phoneNumber: input,
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

You can prompt for a new phone numberby implementing the finish step like this:

function otpFinishStep(otpError) {
  return new Promise((resolve, reject) => {
    // If error message is found, handle it.
    if (otpError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = otpError.message;
    }

    // Prompt the user for whether they received the SMS.
    // Typically, this is a page that shows the OTP already. We are simplifying
    // it by requiring an input.
    var input = confirm('Did you receive a text message?');
    if (!input) {
      // If `Cancel`, then trigger the otpStartStep to re-prompt for
      // phone number.
      resolve({
        resultType: 2, // OnMobileNumberChange enum type = 2
      });

      return;
    }

    // Prompt the user for the OTP.
    var otp = prompt('Enter OTP code:');
    if (otp) {
      // If the input is valid and the user clicked `OK`, return the OTP.
      resolve({
        input: { otp }, // OTP value
        resultType: 0, // OnSuccess enum type = 0
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

Configure Instant Link

To use the Resend/Retry/Phone Change features, you need to install the Web SDK version 2.15.1 or later.

To set the Instant Link handler,

withInstantLinkFallback(startStep: InstantLinkStartStep | InstantLinkStartStepFn, retryStep?: InstantLinkRetryStep | InstantLinkRetryStepFn)

requires implementing the InstantLinkStartStep interface and optionally the InstantLinkRetryStep interface if you wish for advanced capabilities. When returning the phone number in the functions, ensure you return an object with the field phoneNumber to the resolve() function.The Instant Link session has a three minute timeout from when it’s sent through Short Message Service (SMS) to when the customer can click the received link.

Default
Prompt for Phone Number
Resend
Phone Number Change

Follow these instructions if you are implementing Instant Link and you are passing in the phone number on the /v3/start endpoint. In this case, you’ve already prompted for a phone number so you don’t need to prompt for it in the client SDK.Since you passed the phone number in the Start() function, call resolve(null) to communicate to the SDK you have the customer’s agreement to deliver the SMS message. Ensure you return an object to resolve() function.

function instantLinkStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // Since no phone number is needed, don't prompt the user.
    resolve(null);
  });
}

Follow these instructions if implementing MobileAuth and collecting the phone number for desktop. This will implement Instant Link without allowing for SMS resends and phone number changes. If you do want those capabilities, please reference the subsequent tabs (Resend and Phone Number Change).Call the resolve(input: InstantStartInput) method to return the collected phone number to the SDK.Call the reject('some error message') method to communicate to the SDK any issues while trying to obtain the phone number. Report an error if the customer cancels the Instant Link transaction or presses the back button to leave the Instant Link start step dialog.

function instantLinkStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // If no phone number is needed, then don't prompt the user.
    if (!phoneNumberNeeded) {
      resolve(null);

      return;
    }

    // If error message is found around phone number, handle it.
    // The `phoneValidationError` is ONLY available when `phoneNumberNeeded`
    // has a value.
    if (phoneValidationError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = phoneValidationError.message;
    }

    // Prompt the user for the phone number.
    var input = prompt('Enter phone number:');
    if (input) {
      // If the input is valid and the user clicked `OK`, return the phone
      // number.
      resolve({
        phoneNumber: input,
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

Follow these instructions to allow the customer to request a new SMS using the same phone number. There is a max of three send attempts including the initial message.The start step is implemented the same as the previous tab:

function instantLinkStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // If no phone number is needed, then don't prompt the user.
    if (!phoneNumberNeeded) {
      resolve(null);

      return;
    }

    // If error message is found around phone number, handle it.
    // The `phoneValidationError` is ONLY available when `phoneNumberNeeded`
    // has a value.
    if (phoneValidationError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = phoneValidationError.message;
    }

    // Prompt the user for the phone number.
    var input = prompt('Enter phone number:');
    if (input) {
      // If the input is valid and the user clicked `OK`, return the phone
      // number.
      resolve({
        phoneNumber: input,
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

You can then send a new Instant Link SMS to the same phone number by implementing the InstantLinkRetryStep interface, for example:

function instantLinkRetryStep() {
  return new Promise((resolve, reject) => {
    // There are multiple return options:
    // - resolve(0): request resend to the same phone number
    // - reject('user clicked cancel'): error out of the possession flow

    // Prompt the user for the phone number.
    // Typically, this is a page that is automatically closed or redirected
    // once the `AuthFinish` function is called. We are simplifying it by
    // requiring an input.
    var input = confirm('Did you receive a text message?');
    if (input) {
      // If `OK`, close the modal.
      return;
    }

    // Else `Cancel`, then resend to the same phone number.
    resolve(0);
  });
}

Follow these instructions to allow the customer to re-enter their phone number. There is a max of three entries/send attempts.

Manual Request RequiredTo enable phone number change capabilities on your credentials, contact your Prove representative.

The start step is implemented the same as the previous tab:

function instantLinkStartStep(phoneNumberNeeded, phoneValidationError) {
  return new Promise((resolve, reject) => {
    // If no phone number is needed, then don't prompt the user.
    if (!phoneNumberNeeded) {
      resolve(null);

      return;
    }

    // If error message is found around phone number, handle it.
    // The `phoneValidationError` is ONLY available when `phoneNumberNeeded`
    // has a value.
    if (phoneValidationError) {
      // Set to a variable and display it in a field.
      // In this example, we don't do anything with the error.
      var someErrorMessage = phoneValidationError.message;
    }

    // Prompt the user for the phone number.
    var input = prompt('Enter phone number:');
    if (input) {
      // If the input is valid and the user clicked `OK`, return the phone
      // number.
      resolve({
        phoneNumber: input,
      });
    } else {
      // Else, exit the flow.
      reject('phone invalid or user cancelled');
    }
  });
}

You can prompt for a new phone number by implementing the InstantLinkRetryStep interface, for example:

function instantLinkRetryStep() {
  return new Promise((resolve, reject) => {
    // There are multiple return options:
    // - resolve(0): request resend to the same phone number
    // - resolve(1): request phone number change/re-prompt
    // - reject('user clicked cancel'): error out of the possession flow

    // Prompt the user for the phone number.
    // Typically, this is a page that is automatically closed or redirected
    // once the `AuthFinish` function is called. We are simplifying it by
    // requiring an input.
    var input = confirm('Did you receive a text message?');
    if (input) {
      // If `OK`, close the modal.
      return;
    }

    // Else `Cancel`, then trigger the instantLinkStartStep to re-prompt for
    // phone number.
    resolve(1);
  });
}

Verify the Customer Information

Once the customer has made any edits to their prefill information, submit that information to the back end server so the Complete() call can then verify the customer information.

// Send request to the backend to verify customer information.
async function sendInfo(firstName, lastName) {
  const response = await fetch(backendUrl + "/finish", {
    method: "POST",
    headers: {
      Accept: "application/json",
      "Content-Type": "application/json",
    },
    body: JSON.stringify({
      firstName: firstName,
      lastName: lastName,
    }),
  });
  const results = await response.json();
  const rsp = JSON.stringify(results);

  return rsp;
}

Function reference

Start the flow with Authenticator.authenticate(), while creating an instance of Authenticator using AuthenticatorBuilder.build().Use the following methods to configure Authenticator before instantiating. All methods return the same instance of AuthenticatorBuilder to allow chaining of the configuration methods.withAuthFinishStep(step: AuthFinishStep | AuthFinishStepFn): AuthenticatorBuilderThis step customizes the handling of the authentication finish call. The implementation calls the customer’s back end to retrieve authentication results. The customer defines the format of the response to suit the needs of the app.withRole(role: DeviceRole): AuthenticatorBuilderSets the authentication role for this device. It can be either Primary or Secondary. The Primary value sets when the customer is on a mobile device web browser that registers with the Prove system and later authenticated by verifying this registration. On other hand, the Secondary value sets when the customer is on a desktop web browser, which authenticates after receiving customer feedback on their Primary device.withMobileAuthImplementation(implementation: MobileAuthImplementation): AuthenticatorBuilderSets the implementation type for Mobile Auth authenticator. Possible values are Fetch or Pixel with Fetch set by default.withDeviceIpAddress(deviceIp: string | (() => string | null) | null): AuthenticatorBuilderSets the public IP address for this device to report during device registration. If you neglect to call this method, or the IP address value is null, the system attempts to autodetect the IP address using an external service. If the service is inaccessible, the system uses the client’s IP address of the HTTP connection. Successful Mobile Auth authentication requires the client’s public IP address.

withOtpFallback(startStep: OtpStartStep | OtpStartStepFn, finishStep: OtpFinishStep | OtpFinishStepFn): AuthenticatorBuilder

Configure start and finish handlers for SMS OTP authenticator. Collecting customer input requires using these handlers to enter the phone number for delivery of OTP codes, and to enter received OTP codes.

withInstantLinkFallback(instantLinkStartStep: InstantLinkStartStep | InstantLinkStartStepFn, instantLinkRetryStep?: InstantLinkRetryStep | InstantLinkRetryStepFn): AuthenticatorBuilder

Configure handler for Instant Link authenticator. This handler collects customer input to enter the phone number for Instant Link.build(): AuthenticatorFinalizes the configuration and returns an instance of the Authenticator.

Get Started

Welcome

Know

Grow

Pre-Fill

Identity

Resources

​Installation

​Permissions

​Send the type of flow: mobile

​Authenticate()

​Retrieve authToken

​Setup authenticator

​Performing the authentication

​Validate the mobile phone

​Configure OTP

​Verify the Customer Information

​Installation

​Step 1: Connect to JFrog Registry

​Step 2: Adding Dependencies

​Method 1: Using Xcode UI

​Method 2: Using Package.swift

​Send the type of flow: mobile

​Authenticate()

​Retrieve authToken

​Setup authenticator

​Performing the authentication

​Validate the mobile phone

​Configure OTP

​Verify the Customer Information

​Supported languages

​Installation

​Find the type of flow: mobile or desktop

​Authenticate()

​Retrieve authToken

​Setup authenticator

​Validate the mobile phone

​Configure OTP

​Configure Instant Link

​Verify the Customer Information

​Function reference

Installation

Permissions

Send the type of flow: mobile

Authenticate()

Retrieve `authToken`

Setup authenticator

Performing the authentication

Validate the mobile phone

Configure OTP

Verify the Customer Information

Installation

Step 1: Connect to JFrog Registry

Step 2: Adding Dependencies

Method 1: Using Xcode UI

Method 2: Using Package.swift

Send the type of flow: mobile

`Authenticate()`

Retrieve `authToken`

Setup authenticator

Performing the authentication

Validate the mobile phone

Configure OTP

Verify the Customer Information

Supported languages

Installation

Find the type of flow: mobile or desktop

`Authenticate()`

Retrieve `authToken`

Setup authenticator

Validate the mobile phone

Configure OTP

Configure Instant Link

Verify the Customer Information

Function reference
